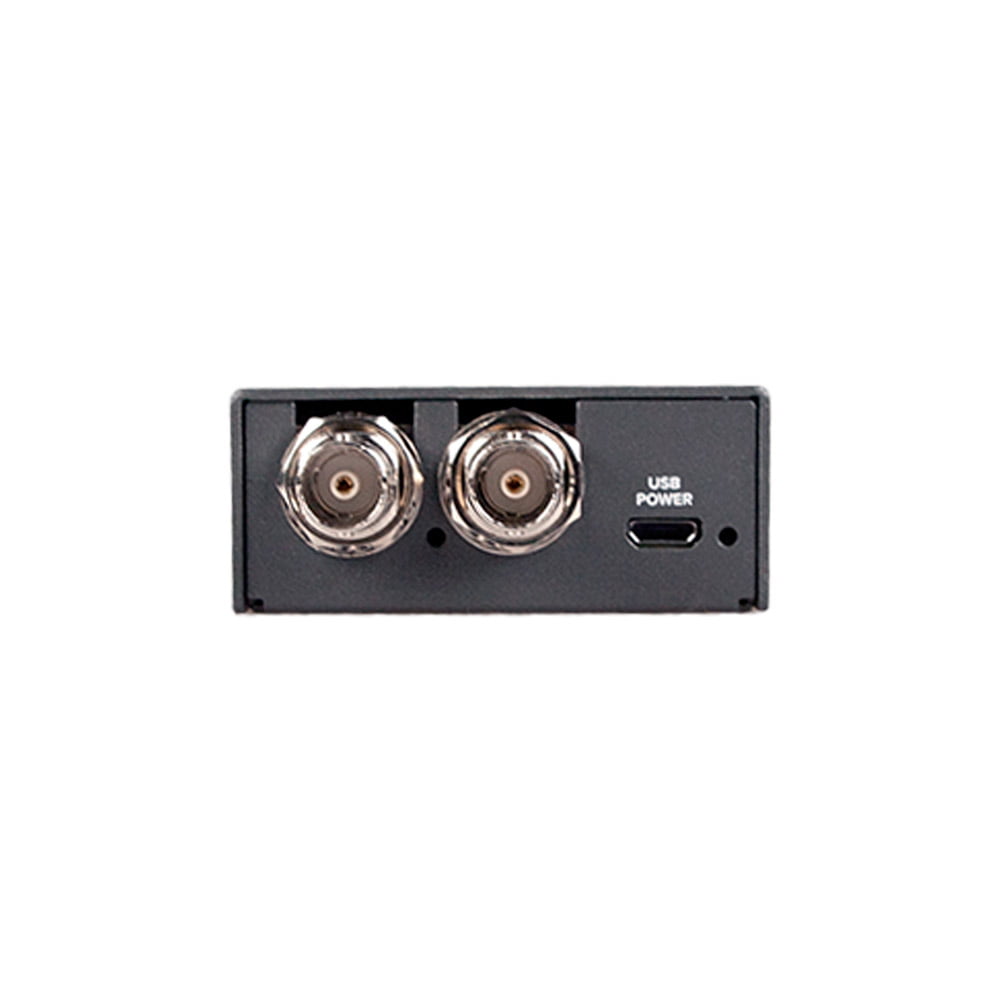

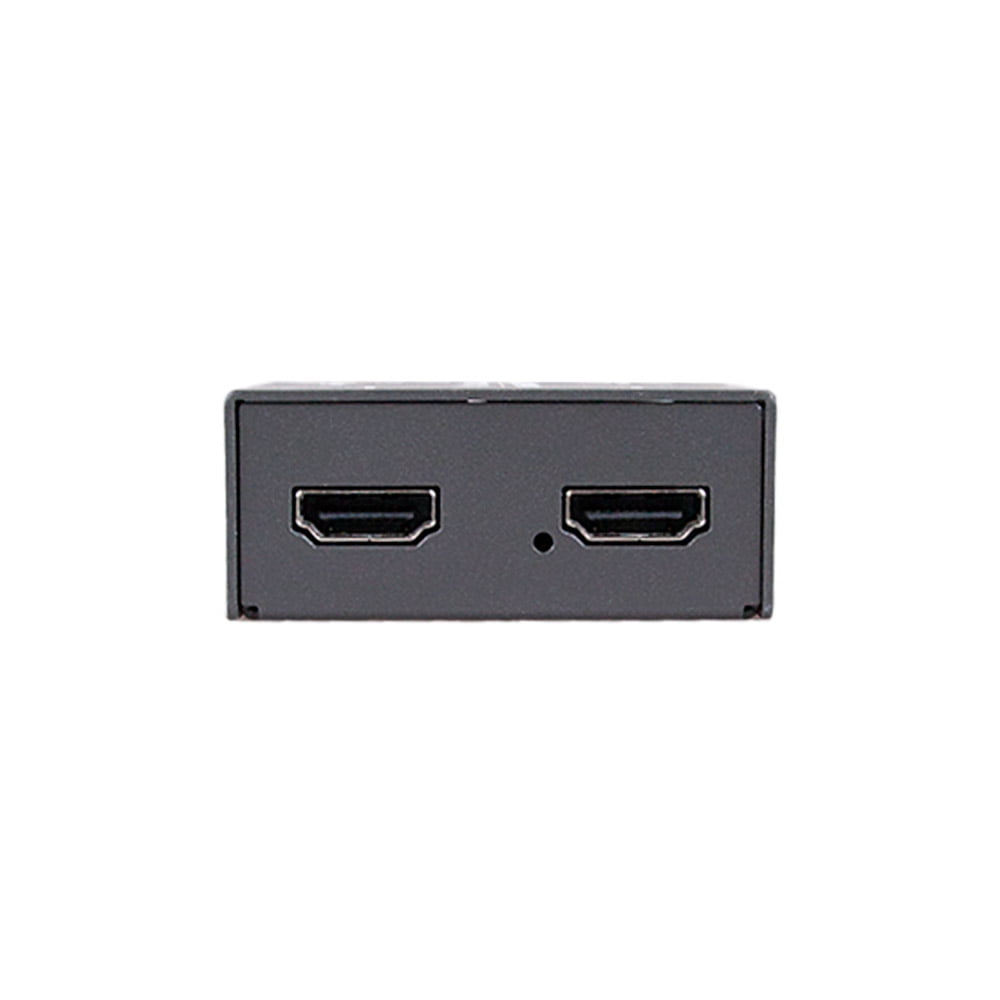

Micro Converter BiDirectional SDI/HDMI

The Blackmagic Design Micro Converter SDI to HDMI 3G is specially designed for professional monitoring. The Micro Converter features a 17-point 3D LUT for color calibration of any kind of display, projector and TV. It can even output the 3D LUT via the SDI loop-through output. In addition, the model supports DCI formats and video standards for film including 1080p/24, 1080p/47.95 and 1080p/48.

Categories: ,
Specifications:
  • Brand: Blackmagic Design
  • Weight: 173.7 8gm
  • Dimensions: 80.7 x 58.9 x 24.8 mm
  • SDI Video Standards: 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
  • SDI Video Rates: SDI video connections are automatically switchable between standard definition and high definition, and user selectable for level A or B via setup utility.
  • SDI Color Precision: 4:2:2
  • SDI Color Space: YUV
  • SDI Auto Switching: Automatically detects SD, HD and 3G-SDI
  • HDMI Video Standards: 525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
  • HDMI Color Precision: 4:2:2
  • HDMI Color Space: YUV
